Eurocode 7 Analysis Methods

DeepEX implements Eurocode 7 specifications and load combinations for shoring design and analysis. This section examines and presents the Eurocode 7 specifications.

In the US practice excavations are typically designed with a service design approach while a Strength Reduction Approach is used in Europe and in many other parts of the world. Eurocode 7 (strength design, herein EC7) recommends that the designer examines a number of different Design Approaches (DA-1, DA-2, DA-3) so that the most critical condition is determined. In Eurocode 7 soil strengths are readjusted according to the material “M” tables, surcharges and permanent actions are readjusted according to the action “A” tables, and resistances are modified according to the “R” tabulated values. Hence, in a case that may be outlined as “A2” + “M2” + “R2” one would have to apply all the relevant factors to “Actions”, “Materials”, and “Resistances”. A designer still has to perform a service check in addition to all the ultimate design approach cases. Hence, a considerable number of cases will have to be examined unless the most critical condition can be easily established by an experienced engineer. In summary, EC7 provides the following combinations:

Design Approach 1, Combination 1: A1 “+” M1 “+” R1

Design Approach 1, Combination 2: A2 “+” M2 “+” R1

Design Approach 2: A1* “+” M1 “+” R2

Design Approach 3: A1* “+” A2+ “+” M2 “+” R3

A1* = For structural actions or external loads, and A2+= for geotechnical actions

EQK (from EC8): M2 “+” R1

(The Italian code DM08 uses DA1-1, DA1-2, and EQK design approach methods only).

In the old Nonlinear (version 7 and before), the different cases would have been examined in many “Load Histories”. The term “Load History” has been replaced in the new software with the concept of “Design Section”. Each design section can be independent from each other or a Design Section can be linked to a Base Design Section. When a design section is linked, the model and analysis options are directly copied from the Base Design Section with the exception of the Soil Code Options (i.e, Eurocode 7, DM08 etc).

In Eurocode 7, various equilibrium and other type checks are examined:

STR: Structural design/equilibrium checks
GEO: Geotechnical equilibrium checks
HYD: Hydraulic heave cases
UPL: Uplift (on a structure)
EQU: Equilibrium states (applicable to seismic conditions?)

DeepEX handles a number of STR, GEO, and HYD checks while it gives the ability to automatically generate “all” Eurocode 7 cases for a model. Unfortunately, Eurocode 7 as a whole is mostly geared towards traditional limit equilibrium analysis. In more advanced analysis methods (such as in Nonlinear), Eurocode 7 can be handled according to “the letter of the code” only when equal groundwater levels are assumed in both wall sides. However, much doubt exists as to the most appropriate method to be employed when different groundwater levels have to be modeled.

Ultimate Limit State and LRFD Design for Deep Excavations

Open Video

Wish to Learn about all Implemented Methods?

Book a FREE online presentation now!

DeepEX - Shoring Design Software

DeepEX is the ultimate software program for design and analysis of Deep Excavations! Design any wall type and support system in the most efficient way!

Structural and Geotechnical Design	Modern Interactive Interface
Model Automatic Optimization	Export Reports and Sketches
Limit Equilibrium - Non-Linear - Finite Element Analysis	2D Design Sections - 3D Frame Analysis

All features and capabilities

DeepEX Features

All software features and capabilities! Review all available design methods and analysis standards!

Learn more

DeepEX Upgrades

We continue our research and we introduce new unique features that extend the software capabilities!

Learn more

Training

Get professional training on DeepEX through videos, examples, webinars and online software presentations!

Learn more

Safety Parameters for Ultimate Limit State Combinations

Safety Parameters for Ultimate Limit State Combinations

Table 1 lists all safety factors that are used in the new software and also provides the used safety factors according to EC7-2008. The last 4 table columns list the code safety factors for each code case/scenario (i.e. in the first row Case 1 refers to M1, Case 2 refers to M2). Table 2 lists the same factors for the Italian code NTC08, while tables 3, 4, and 5 list the safety factors for the Greek, the French, and the German codes respectively. Last, table 2.6 presents the load combinations employed by AASHTO LRFD 5th edition (2010). AASHTO slightly differs from European standards in that soil strength is not factored.

Table 1: List of safety factors for strength design approach according to Eurocode 7

Table 2: List of safety factors for strength design approach according to Italian NTC 2008 code

Note: F_Wall is not defined in EC7. These parameters can be used in an LRFD approach consistent with USA codes.

Table 3: List of safety factors for strength design approach Greek design code 2007

Note: For slope stability the design approach is equivalent to EQU

Table 4: Partial safety factors for strength design approach with French codes XP240 and XP220

Note: French code standards are particularly important for soil nailing walls.

Table 5: Partial safety factors for strength design approach with German DIN 2005

Note: 1. Case 5, 6, and 7 are only used in slope stability analysis in conjunction with cases 1, 2, and 3 respectively.

2. At-rest earth pressure factor is used in multiplying earth pressures only in limit equilibrium analyses.

Table 6: Partial safety factors for strength design approach with AASHTO LRFD 5th edition 2010

Note: 1. AASHTO recommends that slope stability analysis is performed only with the Service I combination.

2. At-rest and active earth pressure factors are used in multiplying earth pressures only in limit equilibrium analyses when the user has selected a relevant method.

Automatic generation of active and passive lateral earth pressure factors in EC7 type approaches

Automatic generation of active and passive lateral earth pressure factors in EC7 type approaches

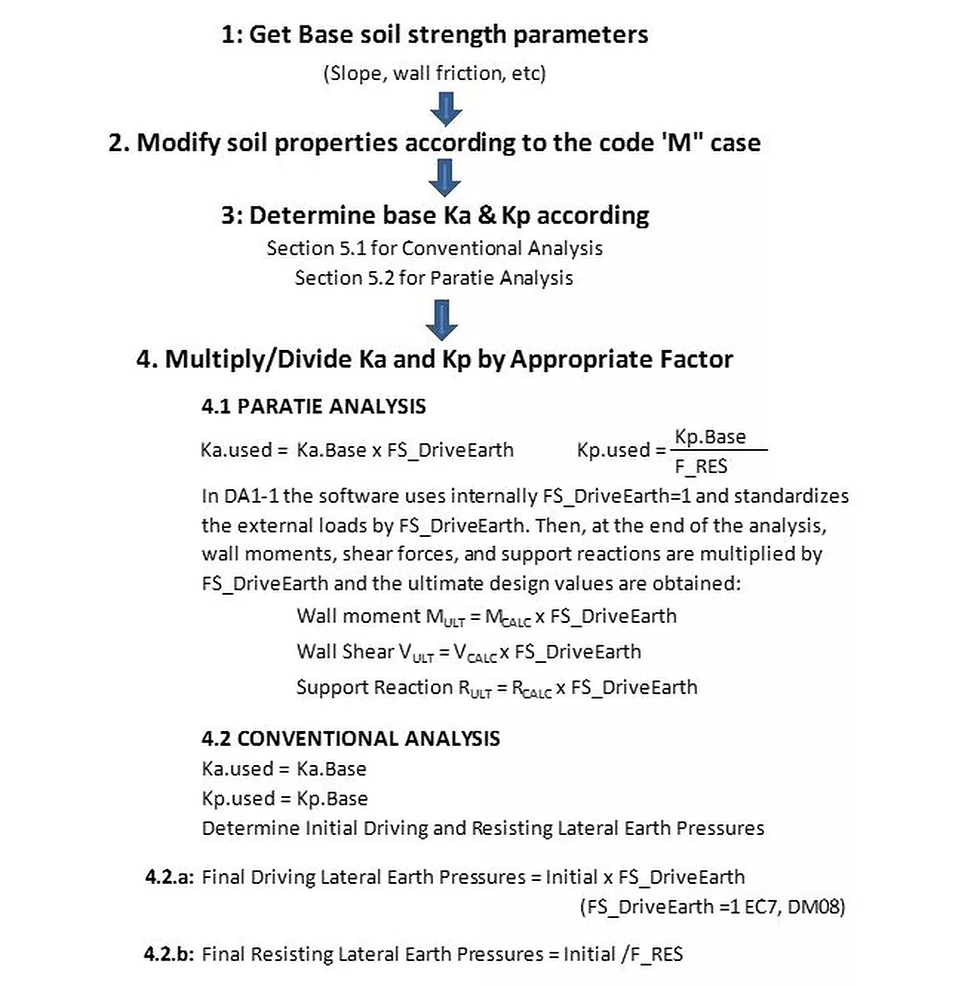

The Figure below outlines the calculation logic for determining the active and passive lateral earth pressure coefficients. In conventional analyses, the resistance factor is applied by dividing the resisting lateral earth pressures with a safety factor.
