Bored pile example

Bored Tangent Pile Wall Example with DeepEX


A bored pile wall example will be analyzed with DeepEX. The following data is available:


a) Soil properties: Sand, friction angle = 30 degrees, total unit weight 120 pcf, loading modulus of elasticity Eload= 300 ksf, reloading modulus of elasticity Eur = 900 ksf. Ultimate bond resistance for ground anchors 40 psi.


b) Excavation depth: 25 ft, cantilever stage 10 ft, ground anchor at 8 ft depth at 15 degrees. Bored piles spaced at 2.5 ft off center. Include 600 psf traffic surcharge 1 ft behind the wall for a length of 20 ft.


Objective: Design the bored pile and the ground anchors with allowable stress methodology and obtain a wall embedment safety factor of 1.5.



Figure: Model in DeepEX, Stage 3.


By double-clicking on the wall, we can define the wall section parameters through a user-friendly dialog. We simply have to select the wall type, choose the reinforced concrete pile thickness and define the pile longitudinal and shear reinforcement.



Figure: Define wall type and secant piles section.


Supports and loads can be added graphically on the model area, by using the Draw Loads and Draw Supports options in the General tab of DeepEX. After we draw the load or the support on the model, the Edit Options dialogs appear. There, we can define the load magnitude, the load position, the support position and structural section etc.


xloads_and_supports.png__800x0_q85_subsampling-2_upscale.jpg.pagespeed.ic.cKZVG7536k.webp

Figure: Define load and support properties.

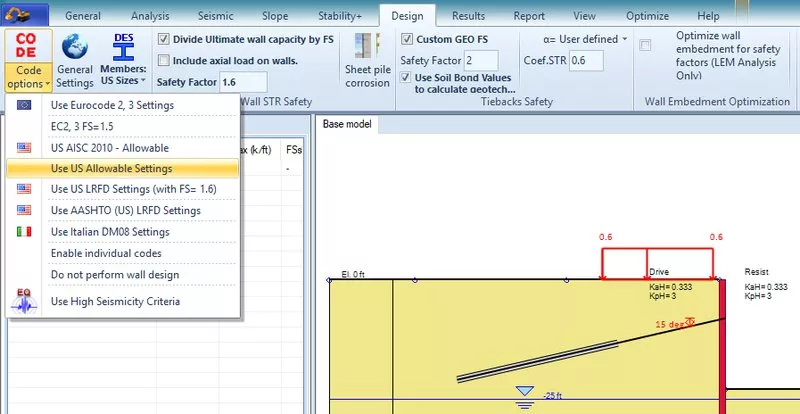

In the Design tab of DeepEX, we can select to assign US allowable settings on this model for the structural design. This option will assign ACI for concrete and ASD code for steel design.



Figure: Assign US Allowable Settings for Concrete and Steel Design.


After the analysis is completed, the Analysis and Checking summary appears. There, we can review the maximum deflection, moment and shear values and the wall and support structural and geotechnical checks.



Figure: Analysis and Checking Summary.


xmodel_with_results.jpg__800x0_q85_subsampling-2_upscale.jpg.pagespeed.ic.9fuBAcpZFz.webp

Figure: Graphical results on model area (Wall Moment, Shear and Deflection diagrams).
